起源の場所:
中国
ブランド名:
Lijiang
証明:
CE
モデル番号:
LJZK 2535

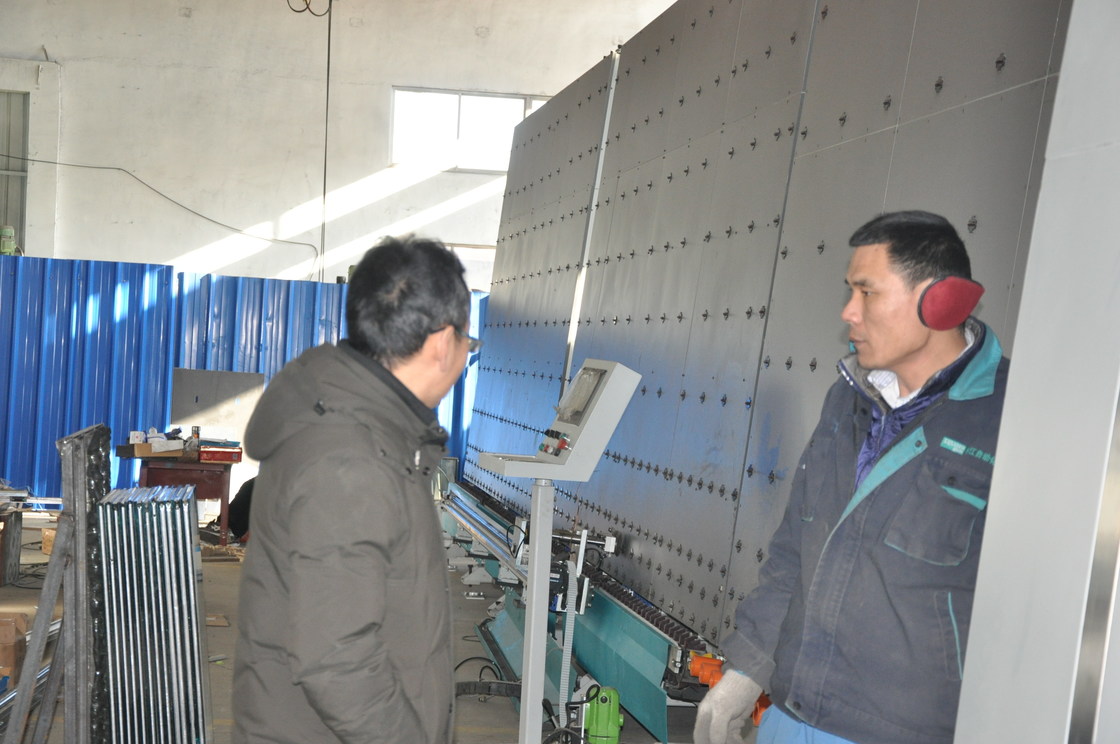

Efficient Double-Layer Glass Processing Machine Cleaning And Drying Machine Production Line
Insulating glass machine can perform the following functions: Glass cleaning, placement of aluminum frame, normal double glazing, ordinary three glass, shaped glass and double glazing other pressing.
Insulating glass machine is a special equipment for the production of aluminum strip insulating glass, which has the advantage of small footprint, high efficiency, reliable performance and practical maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1, the concept of the design of Europe, simple and intelligent management;
2, the world-famous brand of key components, ensure stable operation and long service life;
3, designed for high quality glass processing, such as reflective glass, low E glass, tempered glass and laminated glass;
4, large glass processing glass, various models and customizations available;
5, large output capacity, 1,000 pieces in one working day;
6, feasible for double layer, triple layer, stepped sheet and insulating glass of abnormal shape;
7, automatic filling of argon into the air during the glass sheet assembly process;
8, PLC control system, touch screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
