起源の場所:
中国
ブランド名:
Lijiang
証明:
CE
モデル番号:
LJZK 2535

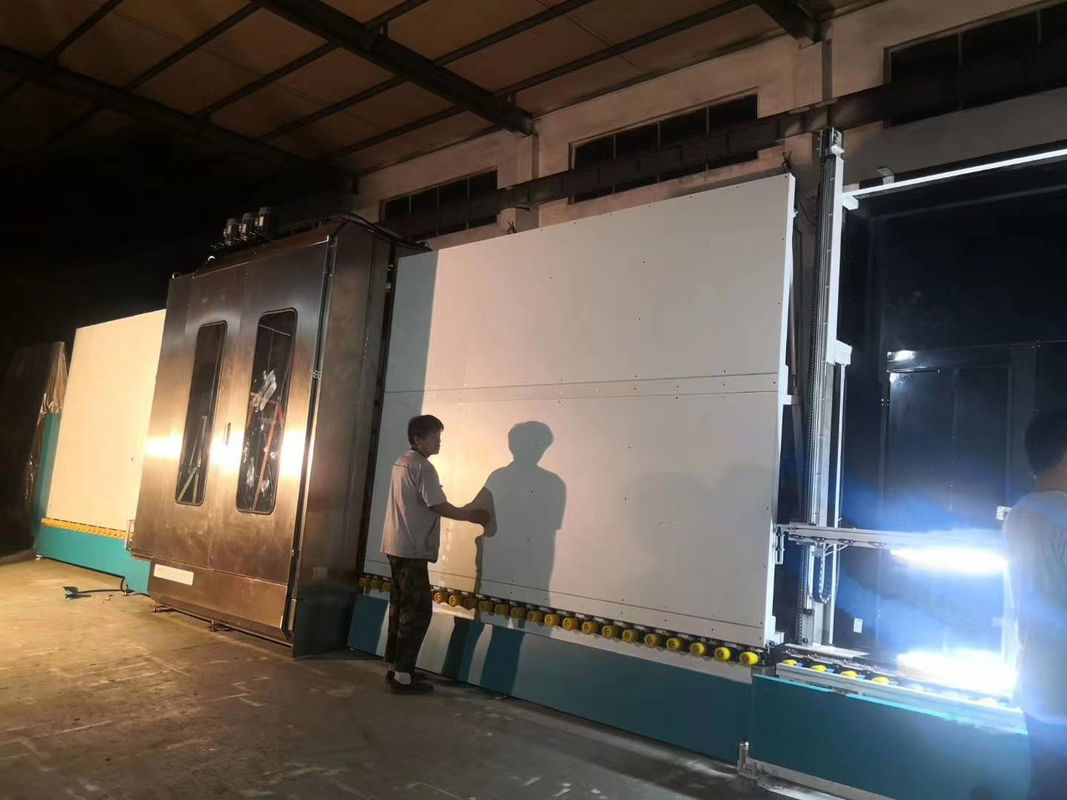

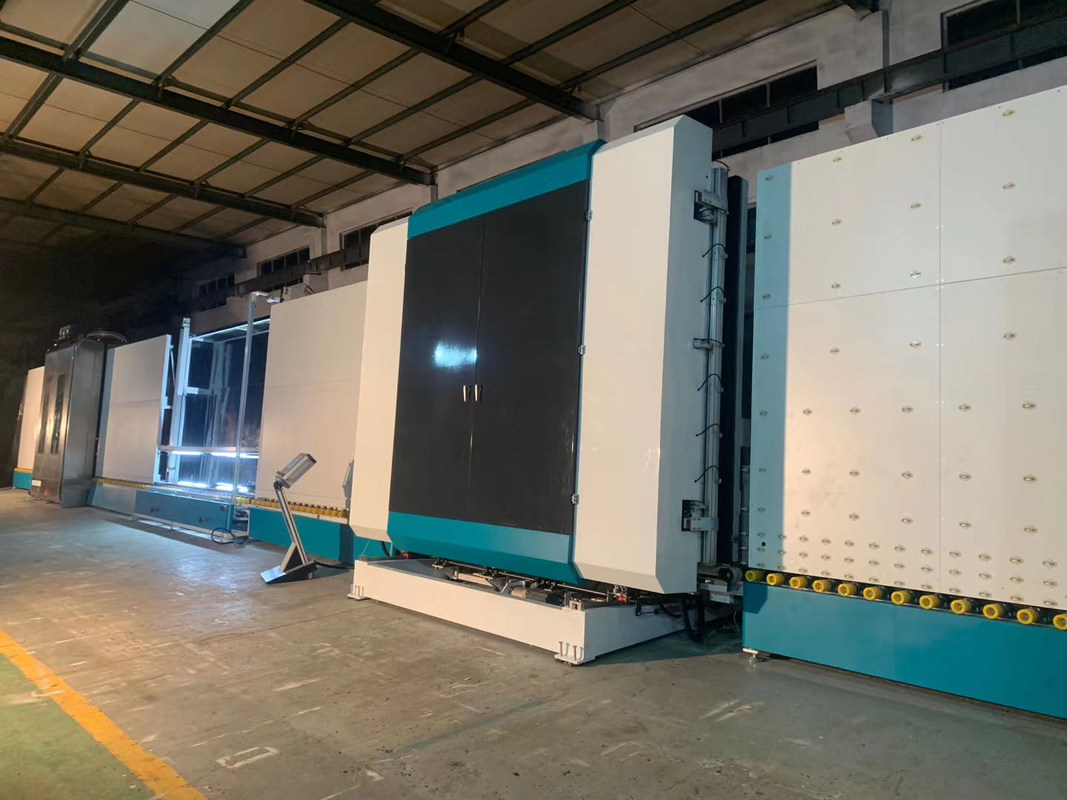

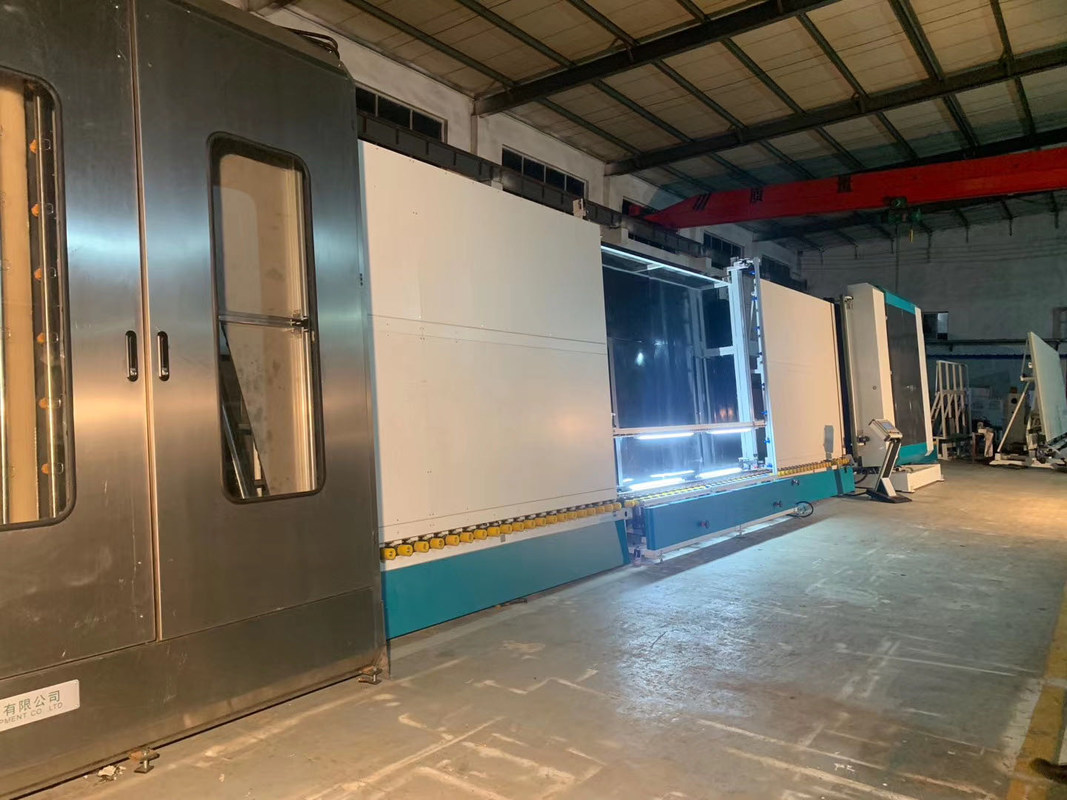

2000mm Insulated Glass Production Line Double Glazing Making Machine
Insulatiing glass machine can perform the following functions: cleaning glass, laying aluminum frame, plain double glass, three ordinary glass, shaped glass and double glass, double pressing
Insulatiing glassware is a special equipment for the production of insulating glass, aluminum strip, which has the advantages of small footprint, high efficiency, reliable performance and convenient maintenance.
glass production line insulating glass machine vertical glass washing machine insulated glass equipment
Advantage:
1,Europe design concept, easy and intelligent operation;
2,World famous brands of key components, ensure stable operation and long service life;
3,Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;
4,Large glass processing scale, various models and customization available;
5,Big output capacity, 1,000pcs output in one working day;
6,Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;
7,Automatic argon air gas filling while glass sheet assembling process;
8,PLC controlling system, touching screen operation;
Electrical parameters
| NAME | ORIGIN | BRAND |
| Transfer motor | Germany | SIEMENS |
| Brush motor | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
| Electric gauge | China | MIRAN |
| Photoelectric switch | Korea | AUTONICS |
| JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD | ||
| Power Supply | 380V,50HZ or customized |
| Total Power | 40 KW |
| Washing Speed | 2-10m/min |
| Max. working speed | 45m/min |
| Min.Glass size | 450*280mm |
| Max. Glass size |
2500*3200 2500*4500(second pressing) |
| Washing glass thickness | 3-15mm |
| Max. Insulating glass thickness | 50mm |
| Weight | 8000kg |
| Dimension (L*W*H) | 23600*3500*3700mm |
