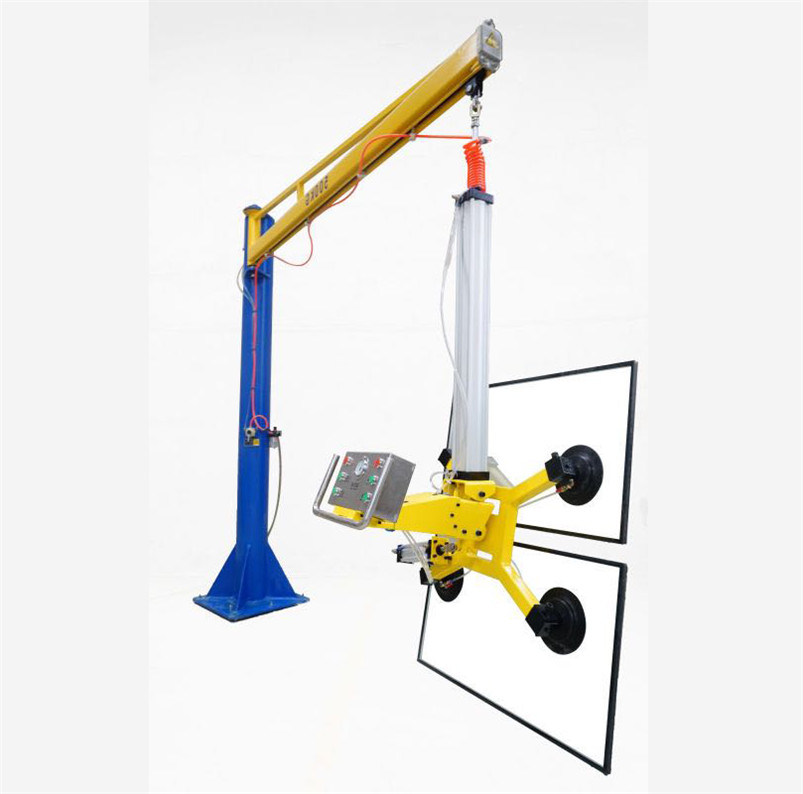

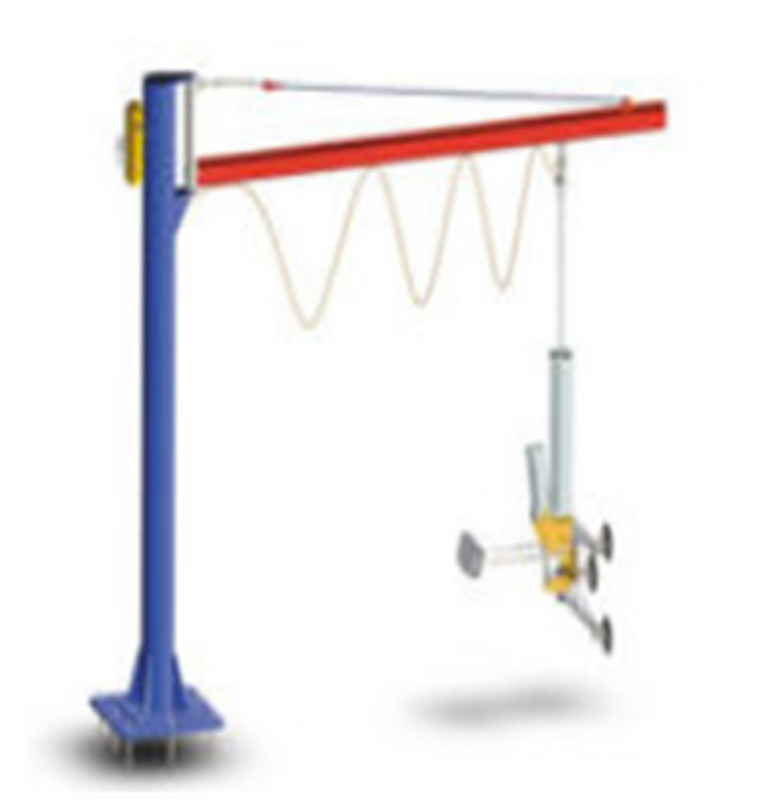

Four suction cup lifting cantilever crane for 1000KG hollow glass processing use to glass processing and install

Main Features of cantilever crane


Optional DC charging vacuum pump, equipped with battery device.

-The maximum load capacity is 1000 kg (10 vacuum cups), the largest. Glass size up to 8m (up to 3.9m with column lifter)

-Suitable for high temperature glass

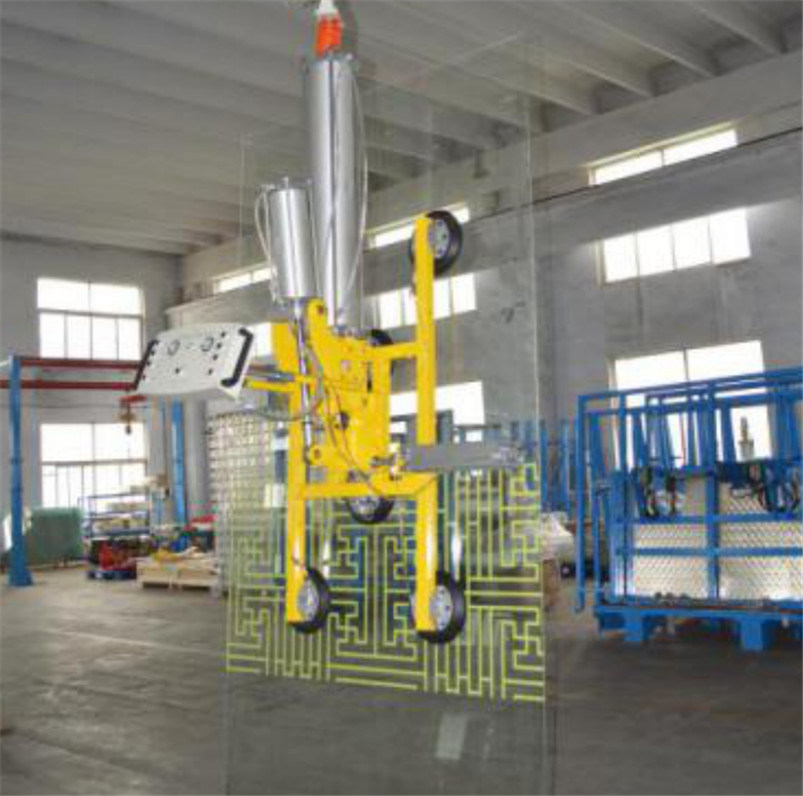

Glass Cantilever Crane with lifting sucker

1. This vacuum glass elevator is used to transport hollow glass plates.
2. This glass lifter can lift 1000kg glass plate
3. Equipped with 5 suction cups. But the suction cup can be installed according to customer needs.
4. The equipment is stable, easy to use and safe.
5. The vacuum cleaner is equipped with warning lights. When the power is cut or the vacuum leaks, it will immediately send out light and sound signals to warn the operator to carry out emergency operations.

Parameters:

Useing For

- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

Other products of LIJIANG GLASS

Automatic Aluminum Spacer Bending Machine LJZW2020

Main feature

• Adopt Siemens PLC control system, touch screen interface

• Japan FUJI CNC servo control system

• Four storage units the size of a hold

• Automatic cutting and feeding of aluminum gaskets

• Auxiliary function of bending adjustment of the large aluminum frame

• Aluminum gaskets are available in various sizes and sizes

• Spatial frame with continuous curved shape

• Separate protective plate on the outside of the bender

• Automatically avoid connection when bending and cutting

• Pause and reset device to manage equipment failures

• USB input function, direct reading of files in Excel format, etc. (optional)

• Interval printing code function (optional)

• Printing label sticker function (optional)

• Can be folded joint in aluminum and stainless steel (optional)

• Automatically drill gas holes (optional)

• Connect to the ERP system (optional)

Technical data

Electrical parameters

LJWBQJ-2500A Glass Washing Machine

1, USES:

glass washing machine CP-2500A used for cleaning and drying the upper and lower surfaces of ordinary plate glass and high quality low-e glass,it is composed of incoming segment, cleaning air-drying segment and outgoing segment.

2, Structural characteristics:

• Aluminum alloy assembly structure, no scrap concept, permanent use,
  High efficiency, energy saving 70% efficiency;

  2. The remaining sheet metal parts are all made of advanced mechanical spraying

  Paint or powder

  3. The rubber roller is made of vulcanized rubber and stainless steel shaft;

  4. The washing part in contact with water is made of stainless steel;

  5. In the cleaning department, the wind crew lifts up and down as a whole, the maximum lift is 350mm, which is convenient for cleaning and maintenance

  6. Three pairs of brushes (Ø150mm) with stainless steel shaft configuration (low-e glass, flat coated glass and sunscreen coated glass can be cleaned without damaging the coated surface);

  7. Two pairs of specially configured stainless steel aluminum alloy air knives, strong wind, good air drying effect, with heating system (with temperature control device, opening and closing optional);

  8. The fan is equipped with an air filter in the air inlet room, which has a large air volume and a good air-drying effect. The entire fan cover is installed on the upper part of the workshop, with an air filter on the side for easy inspection and cleaning

  9. The main drive is gear transmission, frequency conversion speed regulation, digital display, and the washing section brush roller rotation is driven by independent belts of the upper and lower motors respectively. The frequency conversion speed regulation is stable, and the service life is long, realizing high-demand cleaning of special glass;

  10. Mechanical control buttons, digital display of washing machine, simple operation, simple operation and convenient maintenance

  11. The water tank of the washing machine is installed outside, which is convenient for cleaning the water tank, changing the water, and checking the washing effect of the washing machine to be cleaner.

  12. Optional PLC control, touch screen. It is convenient for workers to use and maintain, and can be connected to any edging machine manufacturer without gaps. (If necessary, it can be purchased separately)

3, Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)

2. Minimum glass specification: 400mm×400mm (limited to single row on left and right sides)

3. Glass thickness: 3mm-25mm (digital display)

4. Speed range: glass thickness within 3-25mm Vmax=1-12m/min

5. Main drive, brush speed regulation method: frequency control

6. Table height :900±25mm
