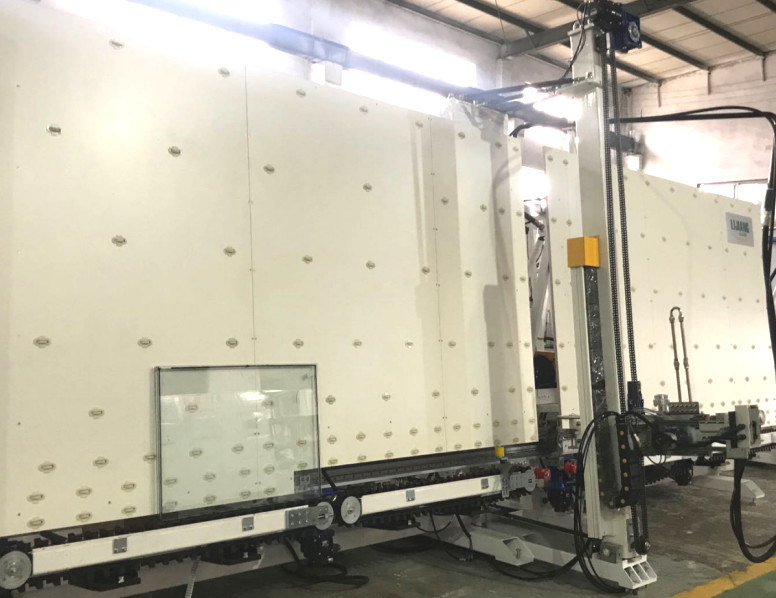

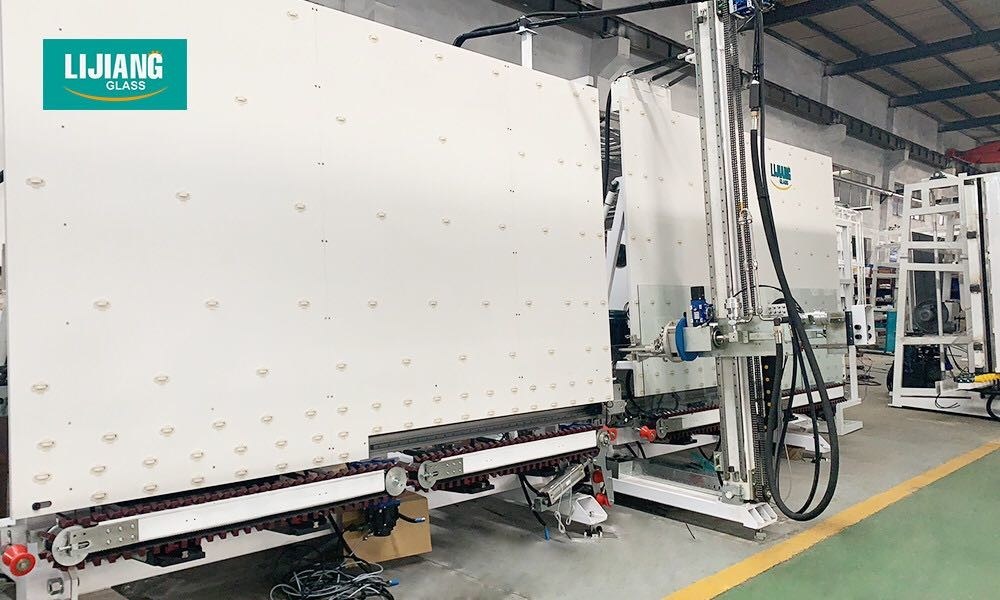

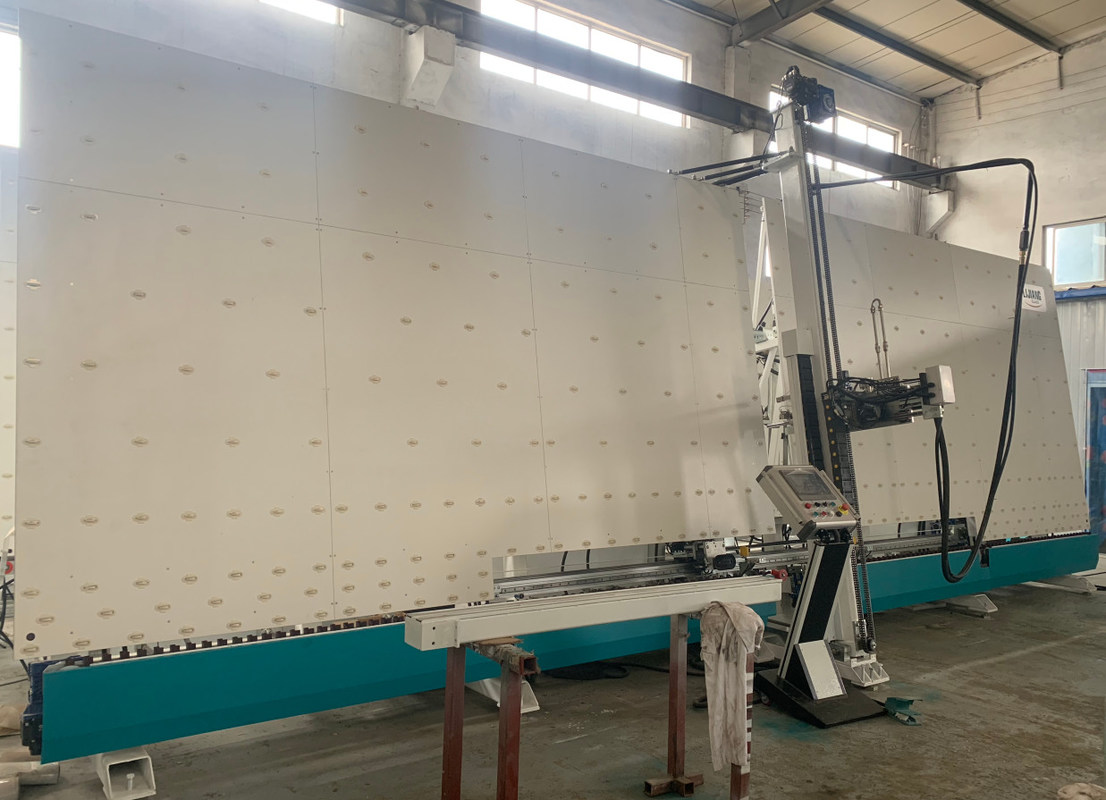

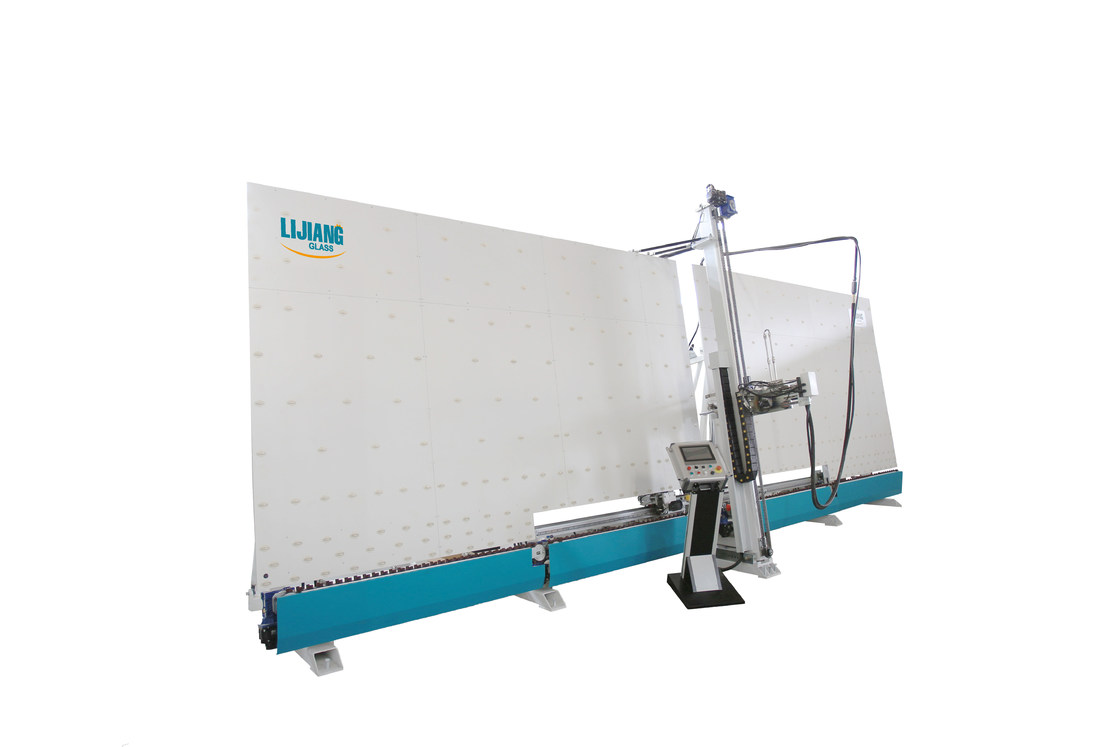

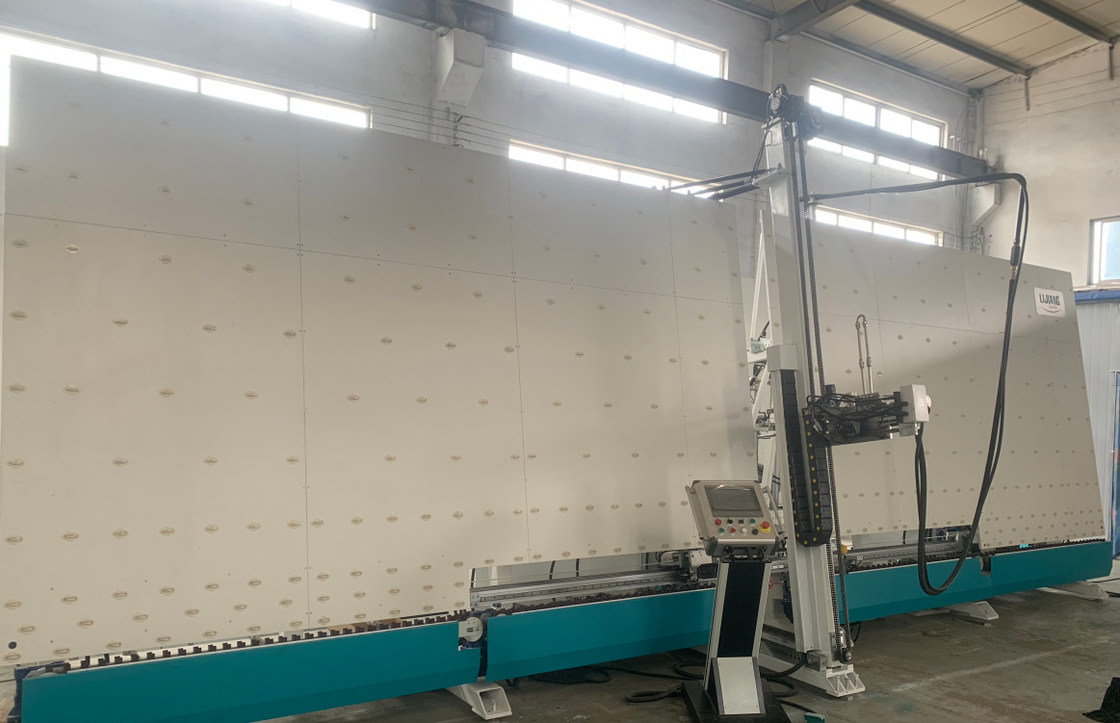

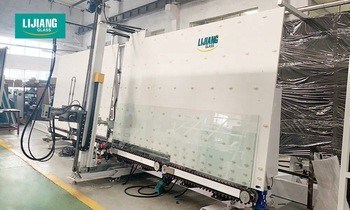

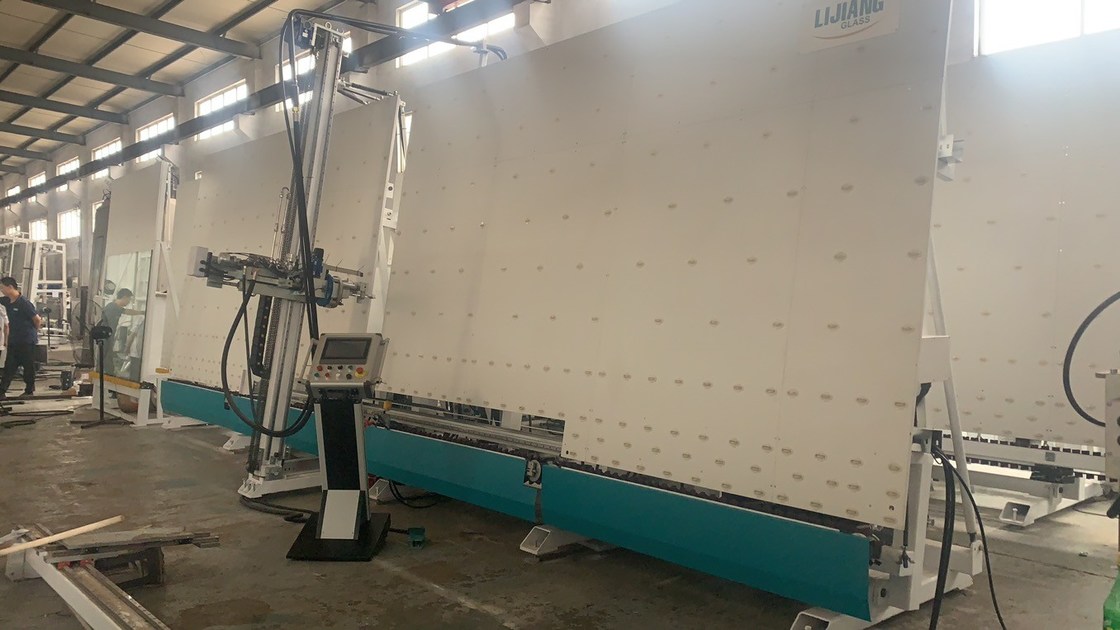

二重層の絶縁のガラス処理のための縦の絶縁のガラス密封ライン

High quality and good price Vertical insulating glass sealing line for double-layer insulating glass processing

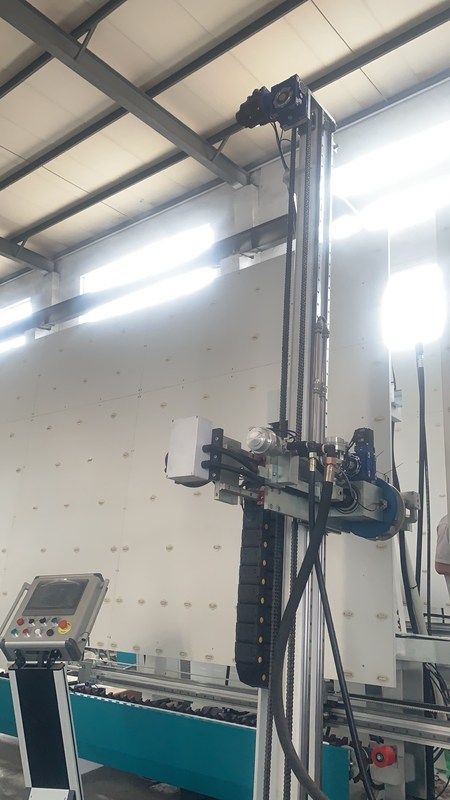

►Application of insulating glass sealing robot

l The minimum and maximum glass sizes are optional

l Adopt 8 servo motors

l Adopt Japan Yaskawa servo control system, stable performance

l Automatic measurement of glass size, coating depth and coating speed, linear adjustment

l Using synchronous belt, stable conveying and accurate positioning

l Spare parts production is standardized and high-precision to ensure the long-term use of the machine

l The edges and corners of the glass are full and bubble-free, and the surface is smooth, no need

l Fully automatic high-efficiency machine

l The new scraper design is especially suitable for making train IG with uniform edges and corners and no bubbles.

l Automatically repair beautiful glass corners

l Smooth conveying, no scratches and pollution

l Single function part is equipped with manual function, easy to adjust

l Special-shaped hollow glass unit (optional)

l Four-side stepped IG unit (optional)

l Double hollow and triple hollow units

►

Ø Two Sets of Pump A & Pump B

Equipped with two groups of A component and two groups of B component, it can be used for two different sealants, such as silicone rubber, polysulfide rubber, organic silicon structural adhesive, etc.

Ø One Set of Pump A & Pump B

Equipped with single A component and single B component. Glue A and B automatic mixing, automatic ratio.

Ø Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

Ø Dyad Body Device

The dual body device has two functions. The one on the left is used to filter impurities and moisture during inflation, and the one on the right is used for lubrication.

Main technical parameter

Jinan Lijiang Automation Equipment Co., Ltd. is located in Jinan, a beautiful spring city. It is a global enterprise integrating R&D, sales and service of glass processing equipment. It is close to the Beijing-Shanghai high-speed railway and the transportation is very convenient.

The company is committed to creating high-end insulating glass machinery and equipment by learning from well-known experts, establishing R&D centers, cooperating with well-known domestic and foreign companies, and introducing advanced technologies. Now, our friendly partners include North Glass, Xinfuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Haojing, Sichuan Lihehua and other well-known enterprises. Since the establishment of the company, the products have been exported to nearly 30 countries and regions in Europe, America, South America, the Middle East, Southeast Asia, and India. At the same time, our company cooperates with well-known domestic research institutes such as North China Industry Group and Shandong University to continuously improve the level of technical research. So far, we have independently produced a vertical automatic insulating glass production line with an inflatable line, a vertical insulating glass sealing robot, an automatic partition bending machine, an automatic desiccant filling machine and a new type of automatic butyl extrusion Machine, its technology and quality have reached the highest domestic leading level.

With the rapid development of the insulating glass industry, Lijiang looks forward to working with you to achieve a win-win situation and create a new world.

Other products of LIJIANG GLASS

LJGZ2020 Desiccant Filling Machine

►APPLICATION

The desiccant filling machine can automatically realize the automatic drilling, filling of desiccant, sealant and other actions of the bulkhead. The control system of the desiccant filling machine adopts German Siemens, with fast filling speed and stable operation, ensuring the effective sealing performance of the sealant. The desiccant filling machine improves the quality of insulating glass. It is a kind of insulating glass and is an indispensable hollow equipment in the production process of insulating glass.

1. Machine head protection device.

2. The electrical components are all German brand-Siemens.
3. The height of the machine can be adjusted according to the size of the bulkhead.
4. The desiccant is automatically loaded from the material barrel.
5. Automatic drilling, filling and sealing functions

►Technical data

►Protection device for machine head.

►All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .

►Electrical component are all Germany Brand-Siemens.

►All spare parts have ID Number for offering the convenience in after sales service.

The desiccant filling machine can automatically realize the automatic drilling, filling of desiccant, sealant and other actions of the bulkhead. The control system of the desiccant filling machine adopts German Siemens, with fast filling speed and stable operation, ensuring the effective sealing performance of the sealant. The desiccant filling machine improves the quality of insulating glass. It is a kind of insulating glass and is an indispensable hollow equipment in the processing of insulating glass.

1. The height of the desiccant filling machine can be adjusted according to the size of the bulkhead
2. The filling time of desiccant is adjustable
3. Automatic loading and replenishment of desiccant filling
4. Automatic drilling, filling and sealing functions for desiccant filling
5. Desiccant filling adopts German Siemens PLC control system
6. The desiccant fills the touch screen interface, which is simple and intuitive
8. Vacuum pump loading device is used for desiccant filling to increase loading speed
9. A large bucket of desiccant can be used for desiccant filling, which saves the time of desiccant replenishment and improves work efficiency
