商品の詳細:
|
| 最高の曲がるサイズ: | 2000 * 2000 | 最低の曲がるサイズ: | 250 * 200 |
|---|---|---|---|
| 空輸補給: | 0.65Mpa | 名前: | 絶縁のガラス作成機械のために曲がるアルミニウム スペーサ棒 |
| ハイライト: | 絶縁のガラス スペーサ曲がる機械,26sスペーサの曲がる機械,0.65MPaアルミニウム スペーサの曲がる機械 |
||

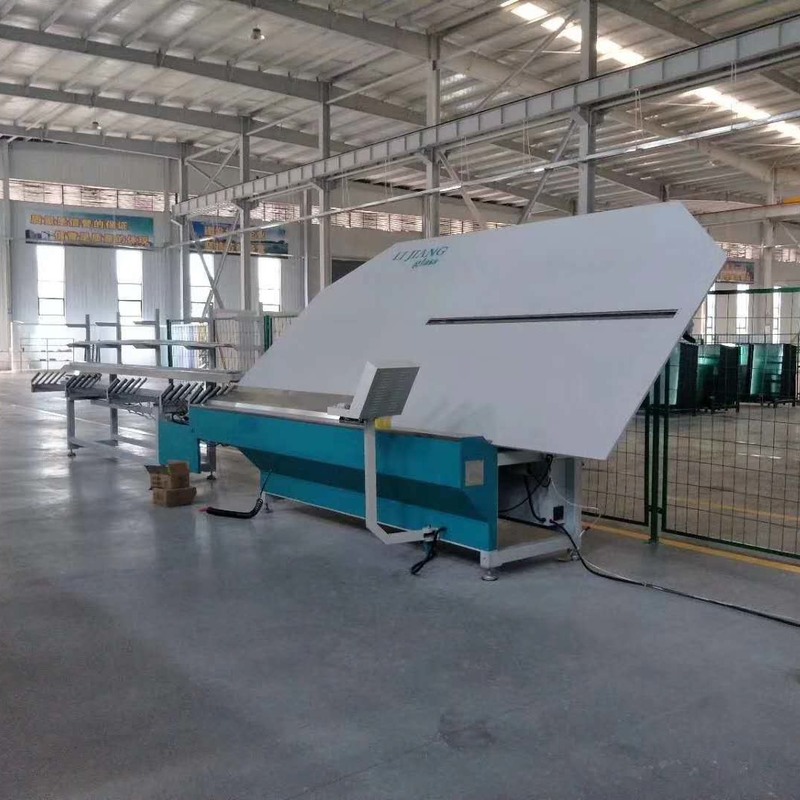

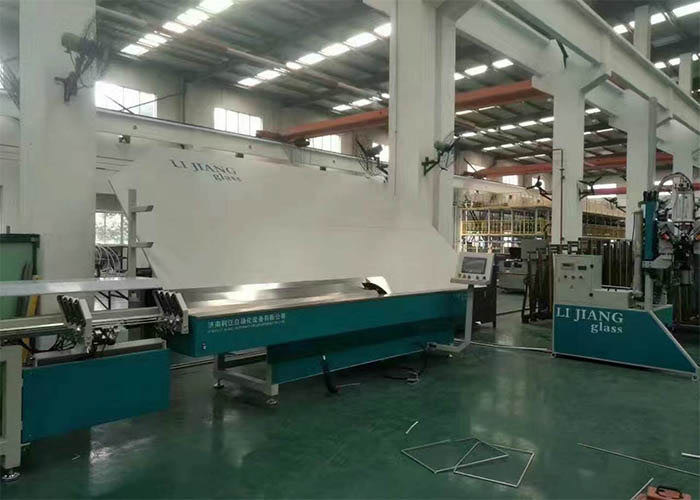

Aluminium Spacer Bar Bending insulating glass automatic spacer bending machine
The automatic roll bending machine is a special device for the production of aluminum insulated glass units, which replaces the conventional production technology. The device can simultaneously manufacture different polygonal convex aluminum frames with a single aluminum strip, increasing the strength of the aluminum frame and improving the sealing effect of the insulating glass.
Equipment details
Uses Siemens PLC control system
There are 4 Siemens servos
There are 4 sets of shelves that can store spacers of different sizes. Use Siemens servo drives to replace different racks.
Aluminum spacers are automatically cut and shipped
Continuously curved spacer frame
Automatically avoid joint corners when folding or cutting
Instead of grabbing the pad from below, the machine grabs the pad from above to solve the old-fashioned flip problem.
Industrial computer technology is used to allow industrial computer technicians to draw in the field and stack the drawn graphics directly.
Fold the frame in big steps using a special mechanical manual device
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Founded in 2009, Kation-Tech specializes in R & D, manufacturing and sales of insulated glass machines and related auxiliary equipment for the deep glass processing industry and the door and window construction industry. The basis of professional processing such as insulated glass machines, aluminum plastic door and window machines and related auxiliary materials. Until 2019, we exported glass machinery and materials to America, South America, Europe, Middle East, India and more. , Almost 30 countries and regions. We have established perfect international business relationships with 10 strong agents and worked together to build a world-famous international brand. Kation-Tech will win the future with you with know-how, profession and integrity!
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
