起源の場所:
中国
ブランド名:
Lijiang
証明:
CE
モデル番号:
LJZW2020

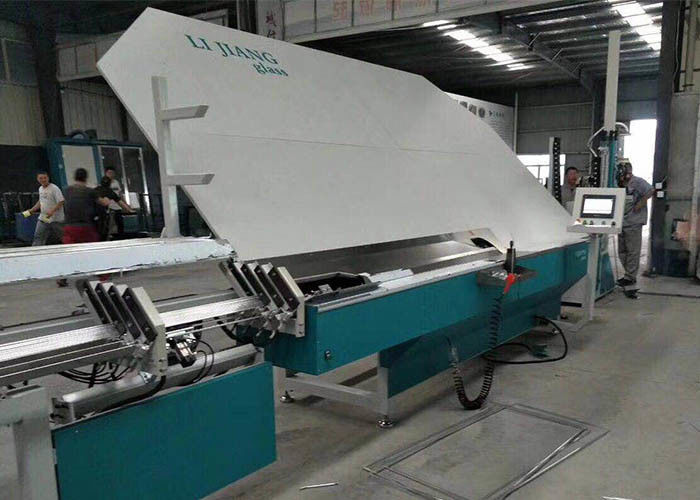

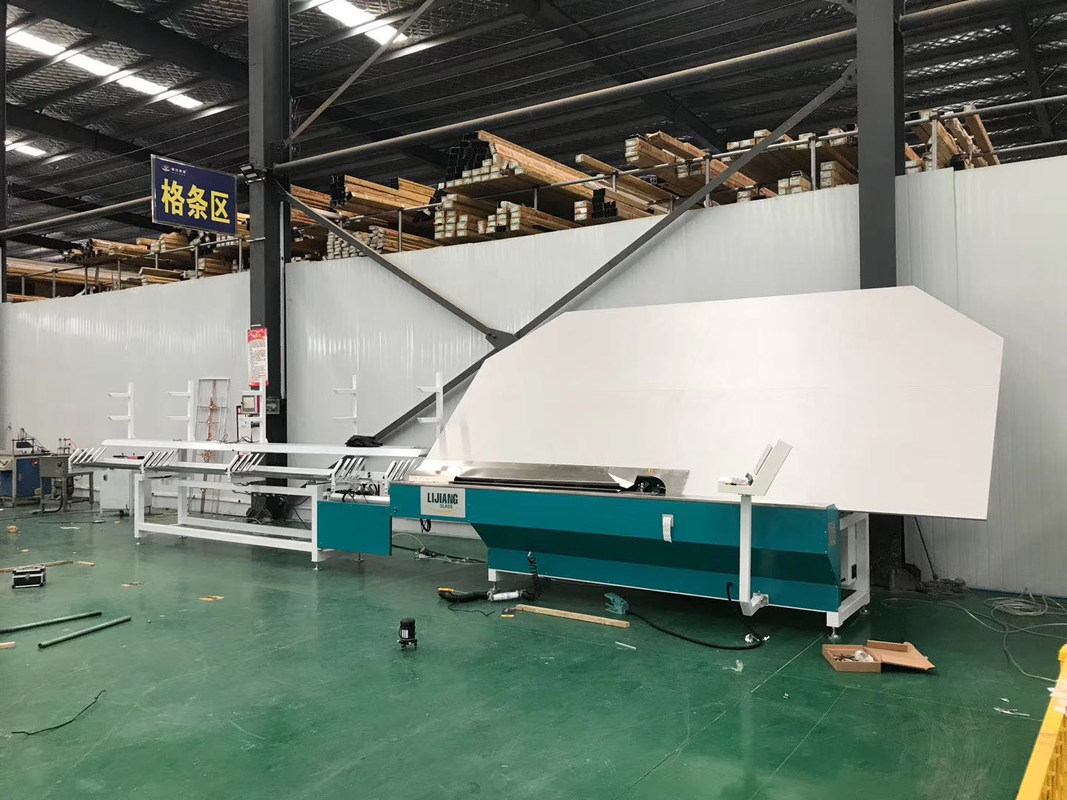

Automatic spacer bending machine is special equipment for making aluminum frame from insulating glass, which replaces traditional fabrication technology. This equipment can make various convex polygonal aluminum frames with one strip of aluminum at a time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass better.
Equipment details
Adopt Siemens PLC control system
There are 4 Siemens servos.
It uses 4 sets of shelves that can store spacers of various sizes. Use a Siemens servo to replace various shelves.
Aluminum spacer is cut and shipped automatically.

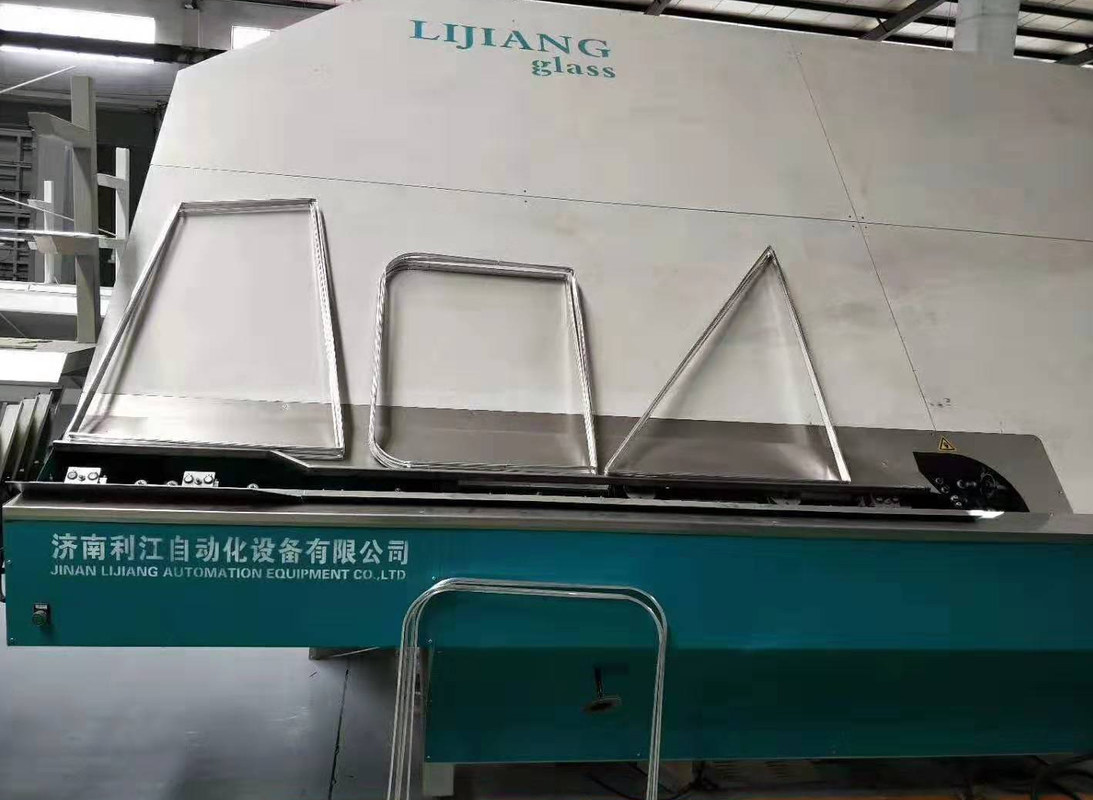

Continuous curved spacer frame
Automatically prevents connection angles during folding or unplugging
Instead of snatching the spacer from below, the machine handles it from above, solving the ancient flip problem.
It uses industrial computer technology that allows industrial computer workers to directly draw and fold directly drawn graphics.
Fold the gap gap wide using special mechanical hand tools.
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Leading Technology
Company Information
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
