絶縁の3mmの1000pcsガラス製造設備

絶縁の3mmの1000pcsガラス製造設備
絶縁の3mmの1000pcsガラス製造設備 絶縁の3mmの1000pcsガラス製造設備 絶縁の3mmの1000pcsガラス製造設備

大画像 :  絶縁の3mmの1000pcsガラス製造設備

商品の詳細:
起源の場所: 中国
ブランド名: Lijiang
証明: CE
モデル番号: LJZK 2535
お支払配送条件:
最小注文数量: 1セット
価格: 49000-66000USD/Set
パッケージの詳細: Woodencaseのect
受渡し時間: 30-40仕事日
支払条件: L/C、D/A、D/P、T/T、ウェスタン・ユニオン、MoneyGram
供給の能力: 10Set/日

絶縁の3mmの1000pcsガラス製造設備

説明
名前: 機械を作る自動安い空の二重ガラスの絶縁のガラス窓 総力: 40のKW
洗浄の速度: 2-10m/min 単一のガラス厚さ: 3~15mm
ハイライト:

1000pcsガラス製造設備

,

3mmのガラス製造設備

,

1000pcs絶縁のガラス ライン

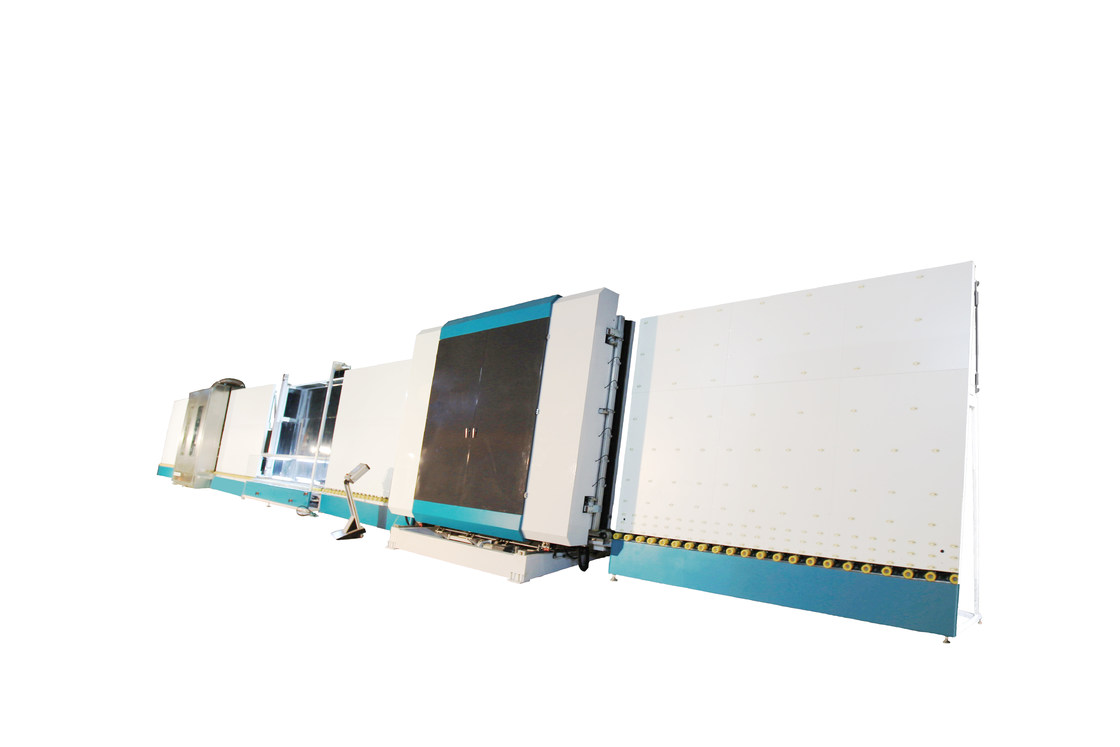

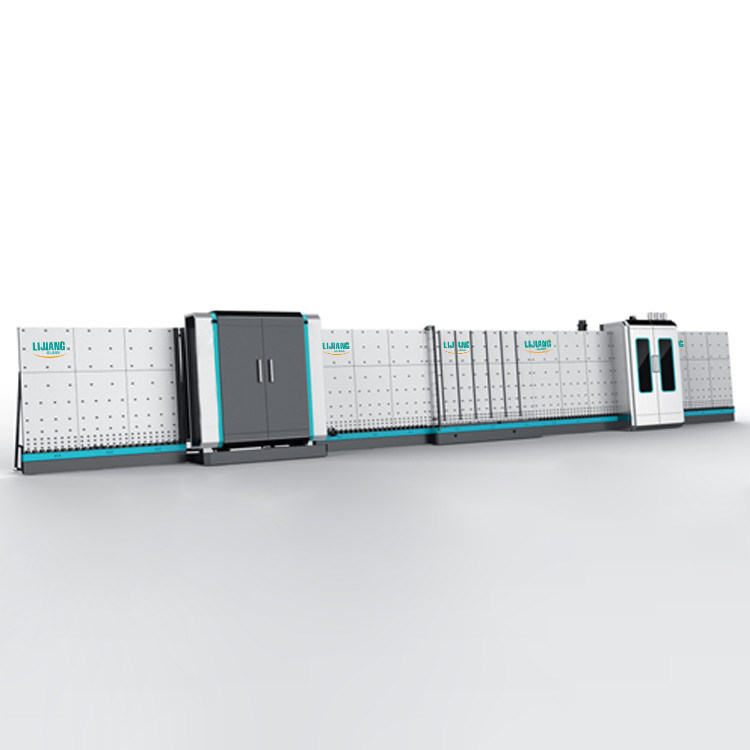

Automatic cheap hollow double glazing insulating glass window making machine

The Insulatiing screen completes the following functions: Clean glass; Aluminum frame placement; Regular double glazing; Three ordinary ones; Double tap the shape glass and the second glass.

Insulatiing glass machine High performance; It is a specialized equipment for the production of aluminum shields with the advantage of reliable performance and convenient maintenance.

絶縁の3mmの1000pcsガラス製造設備 0

glass production line  insulating glass machine   vertical glass washing machine insulated glass equipment

Advantage:

1,Europe design concept, easy and intelligent operation;

2,World famous brands of key components, ensure stable operation and long service life;

3,Designed for high quality glass processing, such as reflective glass, Low-E glass, tempered glass and laminated glass;

4,Large glass processing scale, various models and customization available;

5,Big output capacity, 1,000pcs output in one working day;

6,Workable for double layer, triple layer, stepped sheet and abnormal shape insulating glass;

7,Automatic argon air gas filling while glass sheet assembling process;

8,PLC controlling system, touching screen operation;

Electrical parameters

NAME ORIGIN BRAND
Transfer motor Germany SIEMENS
Brush motor Germany SIEMENS
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Korea AUTONICS
JINAN LIJIANG AUTOMATION EQUIPMENT CO.,LTD



Power Supply 380V,50HZ or customized
Total Power 40 KW
Washing Speed 2-10m/min
Max. working speed 45m/min
Min.Glass size 450*280mm
Max. Glass size

2500*3200

2500*4500(second pressing)

Washing glass thickness 3-15mm
Max. Insulating glass thickness 50mm
Weight 8000kg
Dimension (L*W*H) 23600*3500*3700mm

絶縁の3mmの1000pcsガラス製造設備 1絶縁の3mmの1000pcsガラス製造設備 2

絶縁の3mmの1000pcsガラス製造設備 3

Company Information

About Our Company
Founded in 2009, Kation-Tech specializes in R&D, production and sales of Insulating glass machinery and related auxiliary equipment for the glass deep processing industry and the door and window construction industry. Has the professional processing basis of insulating glass machinery, aluminum-plastic windows & doors machinery and the related auxiliary materials, etc. In this way, we provide the most comprehensive glass processing solution and windows & doors solution for domestic and foreign customers well. Until 2019, we exported glass machines and materials to America, South America, Europe, the Middle East, India and so on, nearly 30 countries and regions. We have established a perfect international business relationship with 10 powerful agents and made an endeavor together to build a famous international brand to the world. Kation-Tech, with craftsmanship, profession and honesty, wins the future with you together!












絶縁の3mmの1000pcsガラス製造設備 4

glass production line insulating glass machine vertical glass washing machine insulated glass equipment
